C40W32D250

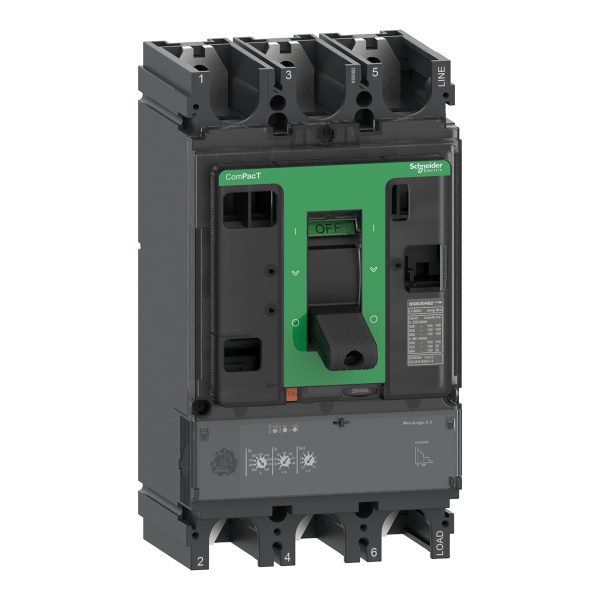

C40W32D250 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 2.3 trip unit 250A, 3 poles 3d Schneider Electric
Schneider Electric
4 Large building ConfigurableConfigurableMoulded Case Circuit Breakers (MCCBs)Power Distribution & Protection
Schneider Electric – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 2.3 trip unit 250A, 3 poles 3d – ComPacT NSX (2021) | C40W32D250
R21 134.87
Request Quote
Download Datasheet
✓Genuine Schneider Electric product — supplied through authorised channels.
■Fast delivery across South Africa & Africa (lead time confirmed on order).
■Off-site stock — availability is confirmed after quote request or order placement.
C40W32D250 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 2.3 trip unit 250A, 3 poles 3d Schneider Electric This ComPacT NSX400HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with 250A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB2 is part of Schneider Electric EcoStruxure Power architecture. Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 2.3 trip unit 250A, 3 poles 3d C40W32D250 – ComPacT NSX (2021)
C40W32D250 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 2.3 trip unit 250A, 3 poles 3d Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the ComPacT range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: ComPacT
- Amperage: 250A
- Voltage: 690VAC
- Poles: 3P
- Breaking Capacity: 100kA
- Mount Type: Fixed
Key Features
- Part of the ComPacT range
- Rated at 250A
- Suitable for 690VAC applications
- 3P configuration
- 100kA breaking capacity
- Fixed installation format
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Metering | Power Capacitors For PF Correction
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Schneider Electric – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 2.3 trip unit 250A, 3 poles 3d – ComPacT NSX (2021) | C40W32D250
No documents yet. Add Product Meta: datasheet_url and catalogue_url.
Ordering Information
Contact us for bulk pricing, lead times and ordering codes.
SKU:
C40W32D250
Technical Specifications
Ordering Information & Identification Codes
Product Name:
C40W32D250 – Circuit breaker ComPacT NSX400HB2 • 100kA at 690VAC • MicroLogic 2.3 trip unit 250A • 3 poles 3d Schneider Electric
Product Series:
ComPacT
Brand:
Schneider Electric
Electrical Ratings & Operation
Rated Current:
250A
Rated Operation Voltage:
690VAC
Operating Voltage:
690VAC
Max Break Capacity:
100kA
Number Of Poles:
3P
