C40W32M320

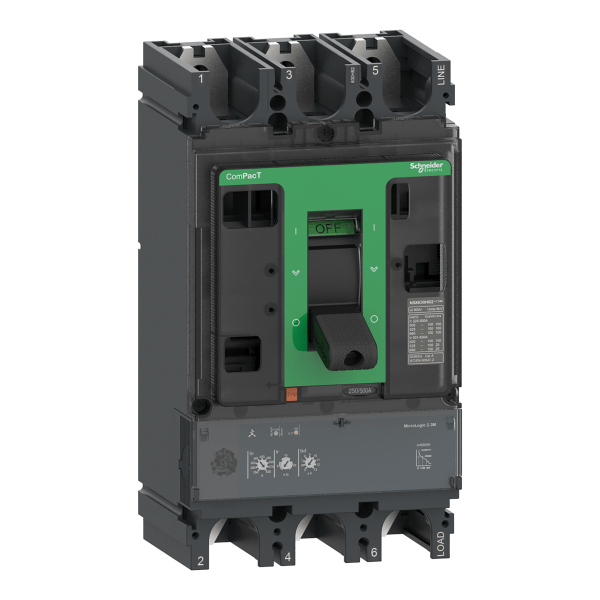

C40W32M320 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 2.3 M trip unit 320A, 3 poles 3d Schneider Electric This ComPacT NSX400HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 M trip unit, with 320A rating. MicroLogic 2.3 M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB2 is part of Schneider Electric EcoStruxure Power architecture. Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 2.3 M trip unit 320A, 3 poles 3d C40W32M320 – ComPacT NSX (2021)

C40W32M320 – Circuit breaker ComPacT NSX400HB2, 100kA at 690VAC, MicroLogic 2.3 M trip unit 320A, 3 poles 3d Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the ComPacT range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: ComPacT
• Amperage: 320A
• Voltage: 690VAC
• Poles: 3P
• Breaking Capacity: 100kA
• Mount Type: Fixed

Key Features

• Part of the ComPacT range
• Rated at 320A
• Suitable for 690VAC applications
• 3P configuration
• 100kA breaking capacity
• Fixed installation format

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects
