XXS18P1AM12

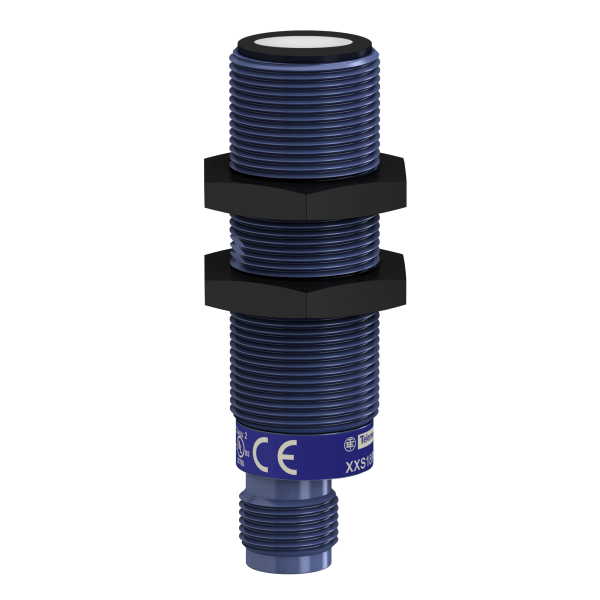

XXS18P1AM12 – Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12 Telemecanique Sensors This product is part of the XX range, an offer of ultrasonic sensors. This ultrasonic sensor has a cylindrical M18 design with diffuse detection system. It supports 1m nominal sensing distance and analogue output. The ultrasonic sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection and current consumption of 30mA. It is furnished with 5-pin M12 male connector for electrical connection. It is an IP65/IP67 rated product. The enclosure is made of PBT with epoxy, rubber and resin front. Its dimensions are 18mm (width) x 64mm (depth) x 18mm (height). It weighs 0.033kg. This product is certified by CE, CULus, EAC, E2, Ecolab and RCM. It meets CSA C22.2 No 14, EN/IEC 60947 5 2 and UL 508 standards. XX Ultrasonic Sensors operate in diffuse, reflex, and thru beam modes. This range of sensors even includes long distance detection models. The XX ultrasonic sensors perform contactless, reliable, and high performance detection regardless of the target’s shape, texture, color, or transparency. Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12 XXS18P1AM12 – OsiSense XX

XXS18P1AM12 – Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 4 20 mA, SYNC, connector M12 Telemecanique Sensors is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the Ultrasonic range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: Ultrasonic
• Voltage: 12V
• IP Rating: IP65

Key Features

• Part of the Ultrasonic range
• Suitable for 12V applications
• IP65 ingress protection

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects

Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
