XY2CH13253

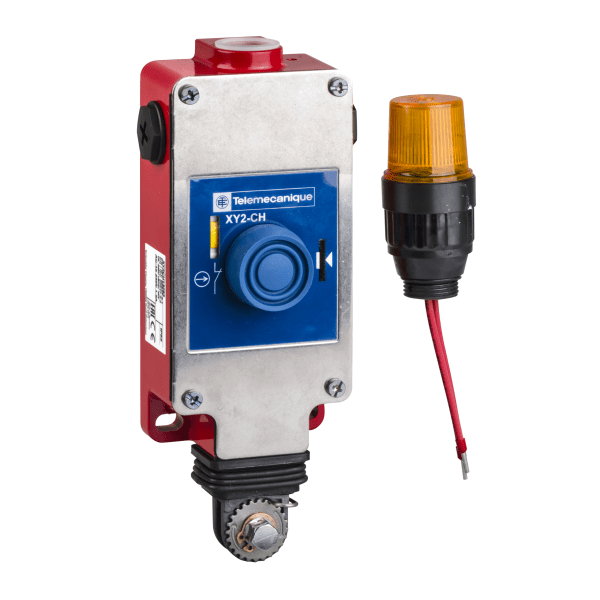

XY2CH13253 – Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 1NC+1 NO, pilot light 24 V, booted pushbutton Telemecanique Sensors This product is part of the XY2C range, an offer of emergency stop rope pull switches. This emergency stop rope pull switch has 1 NC and 1 NO, slow break contacts with the positive opening operation. The switch with a rated operating current of 3A at 240V AC, 0.27A at 250V DC and conventional enclosed thermal current of 10A. It is furnished with screw clamp terminals for electrical connection and 3 tapped entries for PG13.5 cable gland. The trigger cable anchor point at right or left hand sides. It offers long mechanical durability of about 8,00,000 operating cycles. It is an IP65 rated product. The casing is made of Zamak (red) with stainless steel cover. It weighs 0.865kg. It is suitable for woodworking machines, conveyor systems, printing machines, textile machines, rolling mills, test laboratories and surface treatment works. This product is certified by CE and UL. It meets EN/ISO 13850, EN/IEC 60947-5-1, EN/IEC 60947-5-5 and EN/IEC 60204-1 standards. The XY2 line of switches come in a robust metal enclosure so they can be used in severe environments and they conform to EN/ISO 13850 and EN/IEC 60947-5-5. XY2 range emergency stop rope pull switch is intended for all machines requiring stopping of a dangerous movement in the immediate vicinity of the machine. Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 1NC+1 NO, pilot light 24 V, booted pushbutton XY2CH13253 – Preventa XY2C

XY2CH13253 – Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, e XY2CH, 1NC+1 NO, pilot light 24 V, booted pushbutton Telemecanique Sensors is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the Latching range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: Latching
• Amperage: 3A
• Voltage: 24 V
• IP Rating: IP65
• Mount Type: Surface Mount

Key Features

• Part of the Latching range
• Rated at 3A
• Suitable for 24 V applications
• IP65 ingress protection
• Surface Mount installation format

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects
