ZCKJ121H29

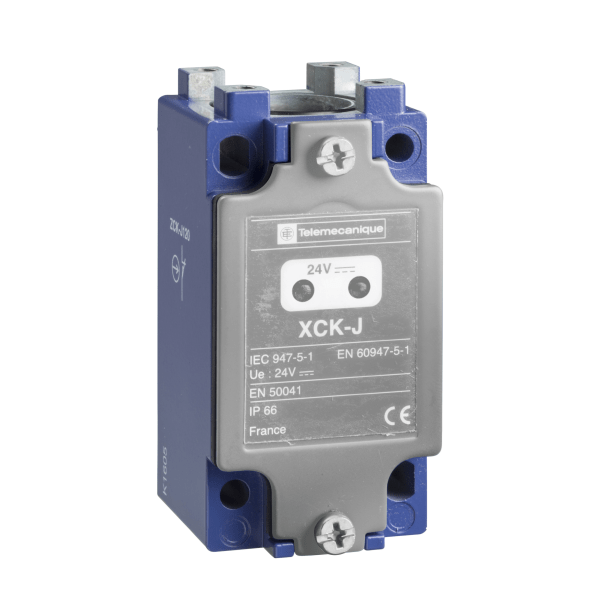

ZCKJ121H29 – Limit switch body, Limit switches XC Standard, ZCKJ, fixed, with display, 1NC+1 NO, snap action, M20 Telemecanique Sensors This product is part of the XC Standard range, an offer of limit switches. It is a limit switch body with display. It has 1 normally closed + 1 normally opened, snap action contacts with positive opening operation. It has 2 poles with silver plated contacts. It is furnished with screw clamp terminals for electrical connection and 1 entry tapped for M20 x 1.5 cable gland. It is an IP66 and IK07 rated product. It is a switch with a rated operational current of 3A at 240V AC, 0.27A at 250V AC and a conventional enclosed thermal current of 10A. It offers long electrical life with electrical durability of about 5 million operating cycles. The limit switch body is made of metal. Its dimensions are 40mm (Width) x 44mm (Depth) x 77mm (Height) and weighs 0.31kg. It is intended for all industrial machine applications such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKJ series limit switches. Its associated heads are ZCKE67, ZCKE66, ZCKE61, ZCKE06, ZCKE62, ZCKE619, ZCKE23, ZCKE65, ZCKE08, ZCKE05, ZCKE64, ZCKE63, ZCKE629 and ZCKE21. Limit switches for contact sensing of inflexible objects. High quality of products and worldwide availability guarantee in a short delivery time. A comprehensive offer of contacts for a simpler and safer machine design. Ex OsiSwitch, IEC standard format limit switches consist of products designed according to EN 50047, EN 50041 as well as popular XCM and XCKM miniature and classic limit switches ranges. Limit switch body, Limit switches XC Standard, ZCKJ, fixed, with display, 1NC+1 NO, snap action, M20 ZCKJ121H29 – OsiSense XC Standard

ZCKJ121H29 – Limit switch body, Limit switches XC Standard, ZCKJ, fixed, with display, 1NC+1 NO, snap action, M20 Telemecanique Sensors is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the Limit range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: Limit
• Amperage: 3A
• Voltage: 240V
• IP Rating: IP66
• Mount Type: Fixed

Key Features

• Part of the Limit range
• Rated at 3A
• Suitable for 240V applications
• IP66 ingress protection
• Fixed installation format

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects

Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
