ZCKJD39H29

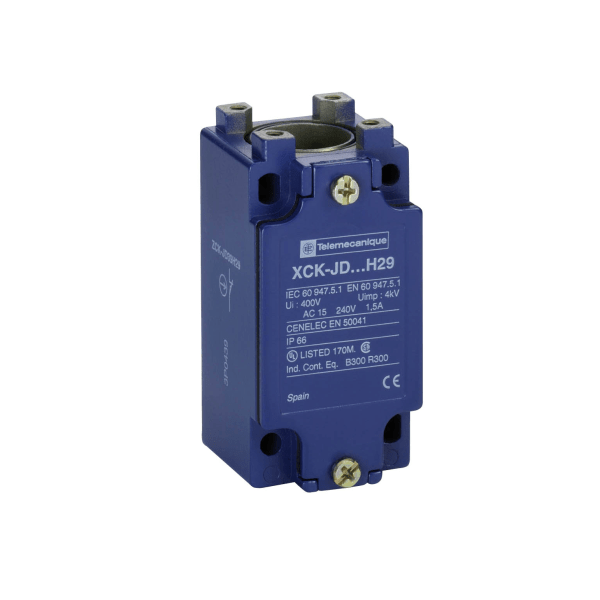

ZCKJD39H29 – Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2NC+1 NO, snap action, M20 Telemecanique Sensors This product is part of the XC Standard range, an offer of limit switches. This body is main part of limit switch, contains the electrical contact mechanism. It has 2 normally closed + 1 normally opened, snap action contacts with positive opening operation. It is a limit switch body with a rated operational current of 1.5A at 240V AC, 0.1A at 250V AC and a conventional enclosed thermal current of 6A. It is furnished with screw clamp terminals for electrical connection and 1 cable entry tapped for M20 x 1.5 cable gland. It offers long electrical durability of about 5 million operating cycles. It is an IP66 and IK05 rated product. This limit switch body is in fixed type which is made of metal. Its dimensions are 52mm (width) x 30mm (depth) x 72mm (height) and weighs 0.21kg. It is intended for all industrial machine application such as packaging, materials handling, conveying, machining, food and beverage, service sector, etc. It is compatible with XCKJ limit switches. It is associated with ZCKE21, ZCKE67, ZCKE64, ZCKE62, ZCKE629, ZCKE63, ZCKE619, ZCKE65, ZCKE23, ZCKE66, ZCKE05, ZCKE61, ZCKE06 and ZCKE08 heads. European standard products (EN 50047) have positive opening contacts, even in snap action versions which allow use in safety applications. Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2NC+1 NO, snap action, M20 ZCKJD39H29 – OsiSense XC Standard

ZCKJD39H29 – Limit switch body, Limit switches XC Standard, ZCKJ, fixed, w/o display, 2NC+1 NO, snap action, M20 Telemecanique Sensors is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the Limit range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: Limit
• Amperage: 5A
• Voltage: 240V
• IP Rating: IP66
• Mount Type: Fixed

Key Features

• Part of the Limit range
• Rated at 5A
• Suitable for 240V applications
• IP66 ingress protection
• Fixed installation format

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects

Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
